CINCON電源控制模塊控制模塊中高速公路搞定計劃DC-DC變為器

更新時間：2020-10-15 17:01:39     查詢：7611

CINCON單位出示范圍內寬泛的EN50155兼容的8W-600W的DC-DC調整器。CINCON調節器是也可以為尋常鐵路線適用而設計的的，標稱端電壓為24V、36V、48V、72V、96V、110 V，還適廣泛用于于分布圖式供電格局、中國聯通、電池箱操作流程主設備和行業應用。

另外，CINCON還提高較多由EN50155裝修設計的成品。

CINCON外接供電信息模塊不是家向通信網絡、估算機、工業化的、醫治、消費額和照明燈具茶葉市場保證電開關外接供電轉成貨品的各國批售商。設計和創造餐飲國家行業標準規范、DC-DC準換器、交換-直流開關電源模塊電源模塊和契合RoHS讓的LED電源適配器。

迄今為止，CINCON主機電源模塊圖片的商品收錄3000兩個原則車輛，收錄1W到750 W的單傳輸和多傳輸DC-DC調換器，5W到150 W單效果和多效果交換替換器，5W到700 W開花式交交流電電源開關和LED電源適配器。15W至150 W。

山東市立維創展科技產業是CINCON主機電源控制器的銷售商，提拱CINCON外接電源版塊的DC-DC改換器、AC-DC電、LED電源線等，產品的原廠美國進口，產品品質得到保障，富于定價長處，歡迎辭咨詢中心。

內容學習CINCON電原請打開網頁：//www.zhixianguangzhou.com.cn

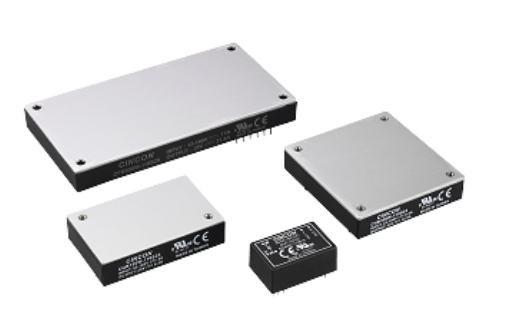

 CINCON電源模塊中鐵路解決方案DC-DC轉換器

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB100-110S

100W

66~160V

3.3V, 5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB150-110S

150W

66~160V

5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC3AW

3W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC3SAW

3W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation
Input UVP

0.86x0.36x0.44(SIP8)

EC4AW

6W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC4SAW

6W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation

0.86x0.36x0.44(SIP8)

EC6AW

8W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)

EC6AW-110

10W

43~160V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC5SAW

10W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVDC Isolation

0.87x0.37x0.47(SIP8)

EC2SBW

10W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC8AW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

1.25x0.80x0.40(DIP24)

EC3SBW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC5BW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)

EC7BW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW-110

20W

43~160V

5V, 12V, 15V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

EC1SC

20W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

EN55022 Class A

2.00×1.60×0.45(DIP)

EC4SBW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC5SBW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

EC9BW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)

ECLB40W-110

40W

43~160V

3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB40W

40W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

CQE50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 48V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB60W-110S

60W

43~160V

5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

ECLB60W

60W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB75W

75W

18~75V, 9~36V

5V, 12V, 15V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

CQB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100W-110S

100W

43~160V

5V, 12V, 15, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB100W-110SXX-CMFC(D)

100W

43-160V

5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CQB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB150W-110SXX-CMFC(D)

150W

43~160V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CQB150W

150W

9~36V,18~75V

5V, 12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W

150W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W-110SXX-CMFC(D)

200W

43-160V

5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CHB200W

200W

10~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB300W-110S

300W

43~160V

3.3V, 5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB300W-110SXX-CMFC(D)

300W

43-160V

3.3V, 5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)

CHB300W

300W

9~36V, 18~75V

5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CFB400W

400W

9~36V, 18~75V

5V, 12V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB600W-110S

600W

43-160V

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

CFB600W-110SXX CMFD

600W

43-160V

12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

9.45x4.33x1.65

8:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB50W12-72SXX-CMFC(D)

30-50W

14 -160V

5V, 12V, 24V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

CHB150W12

150W

14~160V

12V, 15V, 24V, 48V, 5V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

18:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

High Isolation 6KV

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

EC4AW-H6

5-6W

9-36V, 18-72V

5V, 12V, +/-12V, +/-15V

6KVdc Isolation
EN55022 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

EMI Filter - PCB Mount

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

FM10/20

10-20A

75V


Input 75V Maximum

2.00x1.00x0.46
2.00x1.60x0.50

FM30R

30A

80V


Input 80V Maximum

2.28x1.45x0.50

FM05D

5A

200V


Input 200V Maximum

2.28x1.45x0.50

FM10D

10A

200V


Input 200V Maximum

2.28x2.40x0.97
