?Q20HK-1900R定向耦合器

核心性能

Q20HK-1900R定向耦合器

幾率：1.8 – 2 GHz交叉耦合：20音貝±0.5音貝方向盤性：20音貝駐波比：1.3:1添加圖片耗率：0.3dB公率：80瓦評估報告板722-0006-07-E01定貨時間間隔：6-8周

品牌：Electro-Photonics

車輛商品詳情頁講解

1800-2000 MHz Directional Coupler

The Q20HK-1900R is a bi-directional coupler with high directivity and high power handling. Q20HK-1900R is a replacement for Soshin P/N GSC311-20M1900. It is suitable for AWS, DCS, PCS, UMTS, CDMA , IMT and more…

Specifications

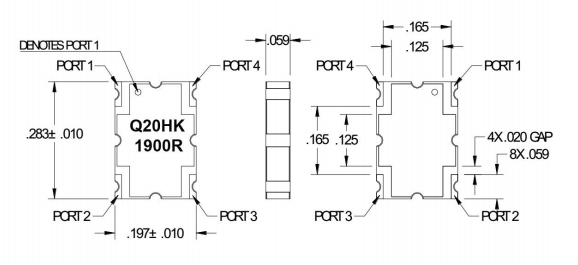

Size: 0.283 x 0.197 inches
Frequency: 1.8 – 2 GHz
Coupling: 20 dB ± 0.5 dB
Directivity: 20 dB
VSWR: 1.3:1
Insertion Loss: 0.3 dB
Power: 80 W
Evaluation board 722-0006-07-E01
