Q3XG-1500R 寬帶混合耦合器

根本參數值

Q3XG-1500R 移動寬帶融合解耦器的頻率：1000-2000兆赫馬力：85瓦導入損失：0.18 dB隔開度：26分貝駐波比：1.18備貨時期：6-8周

品牌：Electro-Photonics

物料詳情頁簡紹

Features

1000 – 2000 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
L-Band
Tape and Reel Option

Specifications

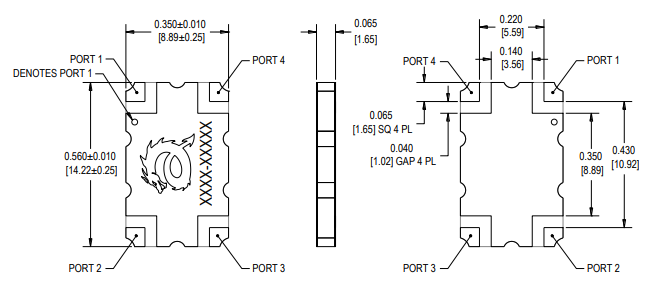

Size: .560 x .350 inches
Frequency: 1000-2000 MHz
Power: 85 W
Insertion Loss: .18 dB
Amplitude Balance: ± .55
Isolation: 24 dB
VSWR: 1.18
Phase Balance: ± 3
