93(x)一系列有源倍頻器Mi-Wave

公布的時段：2024-11-06 17:17:44     搜索：799

Mi Wave的93（x）產品有源倍頻器積極主動用使用性能菁英MMIC集成塊實現了倍頻和不斷擴大。

特色

?高至全波導頻段包括

?必須要低設置安裝驅動電平

?較低諧波電流值

?高打出電功率

用

?自測實驗性室

?子零件

?地方振動器

?5G和6G控制web服務

珠海市市立維創展現代科技有限我司英文我司授權文件代理加盟賣出Mi-Wave豪米波成品，Mi-Wave是民用型和軍用用直徑波類物品全球各地引航者，能夠提供數據直徑波配件和控制器解決規劃。類物品線適用于：放縮器、混頻器、衰減器、濾波器、電源開關、T/R、外置天線、反射性鏡等，所涉及到幾率高達mg320GHz。認可資詢。



Model NumberInput Low Frequency (GHz)Input High Frequency (GHz)Output Low Frequency (GHz)Output High Frequency (GHz)Input Power (dBm)Output Power (dBm)Input PortOutput PortDC BiasX Factor
932-10/20/10/SMAF-25101020+11 to 16 nominal, +17 max.+7 to +10 nominalSMA-FeamleSMA-Feamle+8V@105mA,+12V max.2
932AF-20/599/KF13.252026.5400 to +5 nominal, +10 max.20 nominalK-FemaleWR-28 waveguide, UG-599/U Flange+8 V@470mA,+15 V max.2
932KF-10/KF913.251826.5+5 nominal, +10 max+15 nominalK-FemaleK-Female+8 V@82 mA,+15 V max.2
932KF-30/3.5mmF913.251826.5+3 to +5 nominal, +10 max.+31 nominal3.5 mm Female3.5 mm Female+6V@1.35A, +12 V max.2
934BF-10/3838.2512.53350+2 nominal, +5 max.+10 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.250 A,+12V max.4
934BF-13/3838.2512.533500 to +2 nominal, +5 max.+14.5 nominalK-Female/SMA- FemaleWR-22 waveguide, UG-383/U Flange+8V@0.280 A,+12V max.4
934EF-20/3871522.56090+5 to +7 nominal, +12 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6 to +8V@650mA,+12V max.4
934UF-10/383101540600 nominal, +10max.+13 nominalK-Female/SMA- FemaleWR-19 waveguide, UG-383/U-M Flange+6V@143mA,+6V max.4
934VF-10/38512.518.755075+5 nominal, +10 max.+11 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+8V@270mA,+15V max.4
934VF-15/38512.518.755075+5 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-15 waveguide, UG-385/U Flange+10V@321mA,+15V max.4
936EF-10/38710156090+4 nominal,+10 max.+13 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@237mA,+12V max.6
936EF-20/387H10156090+5 nominal, +10 max.+20 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+6V@540mA,+12V max.6

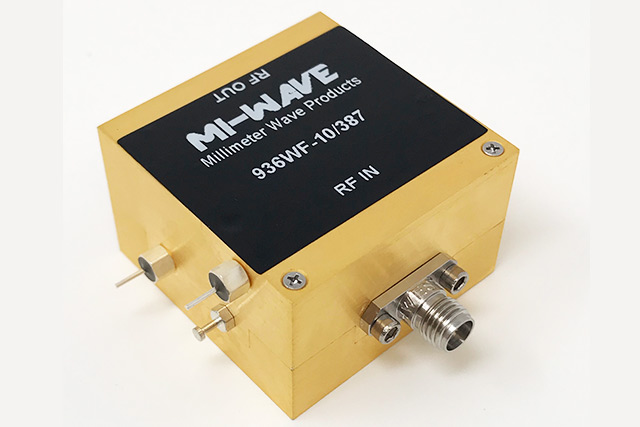

936WF-10/38712.518.3375110+6 nominal,+10 max.+10 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@309mA,+12V max.6
936WF-15/38712.518.3375110+5 to+10 nominal, +15 max.+16 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+12V@500mA,+15V max.6
936WF-20/38712.518.3375110+5 to+10 nominal, +15 max.+20 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@410mA,+15V max.6
938EF-16/387H7.511.256090+3 to +5 nominal, +10 max.+17 nominalK-Female/SMA- FemaleWR-12 waveguide, UG-387/U Flange+8V@590mA,+12V max.8
938W-80/106/15/3888.911.7880106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+13V@180mA,+15V max.9
938WF-10/3871013.2580106+7 nominal, +10 max.+15 nominalK-Female/SMA- FemaleWR-10 waveguide, UG-387/U-M Flange+6V@180mA,+12V max.8
