?Mi-Wave波導到同軸替換器

發布信息準確時間：2022-11-01 16:43:40     瀏覽訪問：849

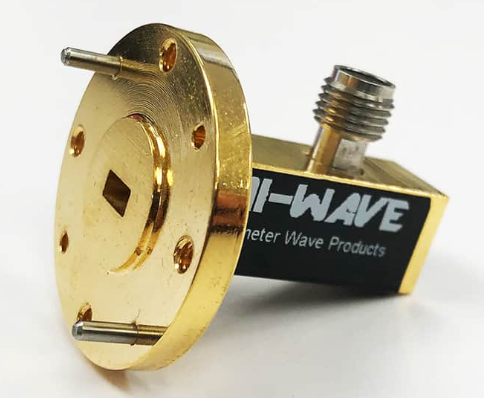

Mi-Wave的410產品系列波導到同軸更換器也能更有效的從正方形波導實用同軸接連器。全波導速率從8.2到110GHz。低放進去不足和駐波比是這類波導同軸兼容性測試器類型的性狀。降低成本費的生育舊版本能讓機和汽車廠廣泛應用。實驗室級別劃分也能為另外型號規格。Mi-Wave的同軸到波導支持器具備無線通訊環保設備的各種需求，是現在目前市體上上適用人群的最佳的波導改換支持器中之一。

本質特征

提供了成本低預算傳奇

率規模 8.2 至 110 GHz

能提供多類同軸連入器

實驗所室運行的高性的版本。

Mi-Wave是商用廚房型和軍工概念股用厘米波產品世界卓越者，能夠能提供厘米波元器和模組消除計劃書。產品線包含：圖像運放電路、混頻器、衰減器、濾波器、按鈕、T/R、無線天線、光菲涅爾透鏡等，所包函的頻率可以達到320GHz.

杭州市立維創展科枝有效廠家授權證書代理權市場Mi-Wave毫米（mm）波產品的，認可在線咨詢。

淘寶手機端知曉Mi-Wave請點開：//www.zhixianguangzhou.com.cn/brand/52.html


Model

Band

Frequency (GHz)

Insertion Loss (dB)

Return Loss (dB)

Power Handling (W)

Waveguide Port

Coaxial Port

410X/39/NF

X-Band

8.2-12.4

0.4

16

400

WR-90 Waveguide, UG-39/U Flange

NF- Female connector

410X/39/SMAF

X-Band

8.2-12.4

0.4

17

150

WR-90 Waveguide, UG-39/U Flange

SMA- Female connector

410X/39/SMAM

X-Band

8.2-12.4

0.4

16

150

WR-90 Waveguide, UG-39/U Flange

SMA-Male connector

410(51)/UBR180/CKF

WR-51

15-12

0.3

20

10

WR-51 Waveguide, UBR180 Flange w "O" Ring

CK-Female connector

410(34)/596/KF

WR-34

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/KF

WR-34

22-33

0.4

17

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

K-Female connector

410(34)/595/3.5mmF

WR-35

22-33

0.4

20

10

WR-34 Waveguide, UG-596 Flange w "O" Ring

3.5 mm Female Connector

410(75)/SMAF

WR-75

10-15

0.3

20

150

WR-75 Waveguide

SMA Female

410Ku/419/SMAF

Ku-Band

12.4-18

0.3

20

150

WR-62 Waveguide, UG-419 Flange

SMA Female

410K/595/SMAF

K-Band

18-26.5

0.4

20

150

WR-42 Waveguide with UG-595/U Flange

SMA-Female

410K/595/KF

K-Band

18-26.5

0.4

20

10

WR-42 Waveguide, UG-595/U Flange

K-Female connector

410A/599/KF

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Female connector

410A/599/KM

Ka-Band

26.5-40

0.4

20

10

WR-28 Waveguide, UG-599/U Flange

K-Male connector

410B/383/KF

Q-Band

33-40

0.5

20

10

WR-22 Waveguide with UG-383/U Flange

K-Female connector

410B/383/KM

Q-Band

33-40

0.4

20

10

WR-22 Waveguide with UG-383/U Flange

2.92mm (K) Male connector

410B/383/2.4mmF

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Female Connector

410B/383/2.4mmM

Q-Band

33-50

0.4

20

10

WR-22 Waveguide, UG-383/U Flange

2.4 mm Male Connector

410U/383/1.85mmF

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Female connector

410U/383/1.85mmM

U-Band

40-60

0.5

17

10

WR-19 Waveguide with UG-383/U-M Flange

1.85 mm Male Connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide With UG-385/U Flange

1.85 mm Female connector

410V/385/1.85mmM

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Male connector

410V/385/1.85mmF

V-Band

50-67

0.5

17

10

WR-15 Waveguide with UG-385/U Flange

1.85 mm Female connector

410V/385/1.00mmF

V-Band

50-67

0.5

15

10

WR-15 Waveguide with UG-385/U Flange

1.00 mm Female connector

410E/387/1.00mmM

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.85 mm Male connector

410E/387/1.00mmF

E-Band

60-90

1

15

10

WR-12 Waveguide, UG-387/U Flange

1.00 mm Female connector

410W/387/1.00mmM

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Male connector

410W/387/1.00mmF

W-Band

75-110

1.2

15

10

WR-10 Waveguide, UG-387/U-M Flange

1.00 mm Female connector
