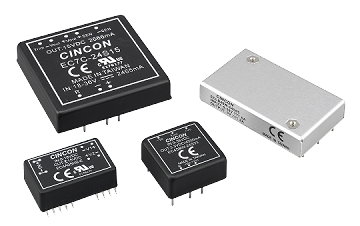

CINCON轉變成器DIP / SMD 3-75W

發布公告準確時間：2022-03-14 16:40:05     預覽：989

CINCON的DIP DC-DC換為器極具各項芯片封裝風格，舉個例子3W至15W的DIP24或SMD24打包封裝方式，10W至30W的1”x1”裝封形態，10W至75W的2”x1”封口結構類型，2”x1.6”和2”x2”打包封裝的形式從15W到40W。CINCON滿足已經超過29年的研制開發事情成就，專業專注于鐵路運輸交通線、產業生育、ITE、5G電信寬帶、醫療機械設備機械設備和中國家庭選用領域。

針對化工產出采用域，CINCON整個的DIPDC-DC準換器也可以中用化學工業污水處理加工用途業務領域。

相對于公路公共交通利用領域，有使用EN50155要求的DIP轉變成器，比如DIP248W和10W、2”x1”裝封的方式20W和40W。前者，CINCON供應2”x1”、20W、18:1超高進入范圍之內DC-DC換為器，包括選用設備的非常多的分布區式電流電壓。

DIP換為器，DC到DC電源模塊生產生產制造商

CINCON設計的和手工制造提供制造國家行業標準的和引腳陳列的3W-75WDC/DCDIP轉化器。特征 是熱速度更快、的工作環境溫度高、進入區域寬。CINCON也為各種類型應用層面供給非要進行分隔和高要進行分隔DC/DC變換器。成都市立維創展網絡是CINCON電包塊的代理商廠家商，作為CINCON電源開關模塊電源的DC-DC裝換器、AC-DC電源模塊、LED開關電源等，品牌原版進口清關，線質量保險，極強定價特點，認可管理咨詢

祥情認知CINCON電原請點選：//www.zhixianguangzhou.com.cn/article/2177.html


18:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)
NEWEC7BW1820W8.5~160V12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
  UL62368-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
4:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AW3W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AW6W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC6AW8W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN50155 Compliant

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SBW10W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC4BW10W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55022 Class A

2.00x1.00x0.40(DIP)
NEWEC7AW10W18~74V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC6AW-11010W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
  UL60950-1 & CB
  EN45545-2
  EN50155 Compliant

1.25x0.80x0.50(DIP24)

EC8AW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN55032 Class A

1.25x0.80x0.40(DIP24)

EC3SBW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC5BW15W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5C15W18~72V, 9~36V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC1SC20W18~72V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5VEN55022 Class A2.00×1.60×0.45(DIP)

EC4SBW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)

EC7BW-11020W43~160V12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)

EC7BW20W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN45545-2
  EN50155 Compliant

2.00x1.00x0.40(DIP)
NRNDEC3SCW30W18~75V, 9~36V12V, 15V, 3.3V, 5V

1.5KVdc Isolation
  EN60950-1

2.00×1.60×0.40(DIP)

EC5SBW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation1.00x1.00x0.40(DIP)
NRNDEC6E30W18~72V, 9~36V+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V,   ±12V, ±15V500Vdc Isolation2.56x3.00x0.83(DIP)

EC9BW30W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

ECLB40W40W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)

ECLB40W-11040W43~160V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
  UL60950-1
  EN45545-2
  EN50155 Compliant

2.05x1.20x0.40(DIP)

ECLB60W60W18~75V, 9~36V12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
NEWECLB75W75W18~75V, 9~36V12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
  With Mounting Inserts

2.05x1.20x0.40(DIP)
2:1 Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3A3W18~36V, 36~72V, 4.5~6V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3AB3W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)

NRNDEC3BB7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
  EN55022 Class B

2.00x1.00x0.40(DIP)

EC3A-E3W18~36V, 36~72V, 4.5~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC4A6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC4AB6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55022 Class B
  UL60950-1

1.25x0.80x0.50(DIP24)
  1.25x0.80x0.55(SMD24)


EC4A-E6W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
  EN55032 Class A
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
  1.25×0.80x0.41(SMD24)


EC6A7.5W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC2SB10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)


EC4BE10W18~36V, 36~72V, 9~18V12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC4BU10W18~36V, 36~75V, 4.7~9V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7A10W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
  UL60950-1

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)


EC3SB15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V1.5KVdc Isolation

1.00x1.00x0.40(DIP)
  1.00x1.00x0.36(SMD)

NRNDEC3C15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V500Vdc Isolation2.00x2.00x0.40(DIP)

EC5BU15W18~36V, 36~75V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC5BE15W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
  EN55032 Class A

2.00x1.00x0.40(DIP)

EC7B20W18~36V, 36~75V, 9~18V1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V,   ±15V1.5KVdc Isolation2.00x1.00x0.40(DIP)

EC6C30W18~36V, 36~72V, 9~18V12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V,   ±15V, ±5V

500Vdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)

EC7C40W18~36V, 36~75V, 9~18V12V, 15V, 2.5V, 3.3/5V, 3.3/±12V,   3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
  EN60950-1

2.00x2.00x0.40(DIP)
High Isolation 6KV

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC4AW-H66W18~72VDC, 9~36VDC12V, 5V, ±12V, ±15V

6KVdc Isolation
  EN55032 Class A
  5uA Leakage Current

1.25x0.80x0.40
  (DIP24)

+/-10% Input Range

ModelPowerInput VoltageOutput VoltageFeaturesDimensions (Inch)

EC3AE3W12V, 24V, 28V, 48V, 5V12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
  1.25×0.80x0.45(SMD24)
