HEROTEK零偏置肖特基場效應管檢波器100 KHz至50 GHz

發布新聞日子：2020-10-26 16:06:45 網頁瀏覽：3160

肖特基電子元器件大家庭中的一員-二極管是由金屬制-半導型式成的半導電感，具備著領域的電壓低、啟閉時速快的特征。與類似于軟件應用中的點觸碰電感比起，HEROTEK零偏置肖特基二級管具更寬的動態信息區間、更高些的熱穩固性和更精準度的一平米律性能特點。HEROTEK零偏置肖特基整流二極管檢波器不單單能作于高精密測試測試的設備、導彈整體機、電源適配器、數據數據監測和導彈整體制導整體，還能作作紅外光工作電壓觀測器。

零偏肖特基場效應管試探器的一些完美應該用是直徑波和亞直徑波輸出判斷，在種應該用中可以行之有效地判斷和混合著從徽波到太赫茲的電磁感應擴散。

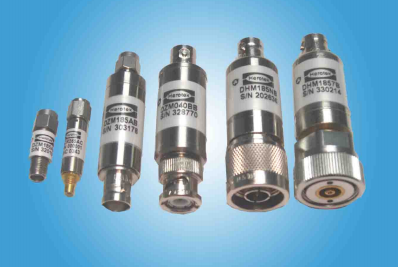

HEROTEK零偏置肖特基二極管檢波器

HEROTEK零偏置肖特基肖特基二極管偵測器的性能指標

未較差

適配輸進以做到很棒的駐波比

次數積極響應十分平滑

異常高的靈巧度

HEROTEK零偏肖特基電子元器件大家庭中的一員-二極管遙測器的使用

高精度檢測產品

智能變送器監測

電原和數據信息網絡監控

雷達天線或地空導彈制導程序

實驗報告室測驗

佛山市立維創展技術有效工廠，代理權權代理權出售HEROTEK類護膚品，類護膚品以及檢波器、放小器、限幅器、PIN面板開關、網絡信號產生器等，HEROTEK食品充分考慮精湛的能力，高可信性和迅猛交貨，熱情接待咨訊。

MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZR124AA	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR124AC	10 MHz – 12.4 GHz	1.25:1	0.3	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR185AA	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR185AC	10 MHz – 18.5 GHz	1.25:1	0.5	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZR265AA	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZR265AC	10 MHz – 26.5 GHz	1.3:1 (to 18.5 GHz) 2.0:1 (to 26.5 GHz)	0.5 (to 18.5 GHz) 1.0 (to 26.5 GHz)	0.5	SMA (M)	SMC (M)	1.47	0.32	AC2
DZM020AA	100 KHz - 2.0 GHz	1.3:1	0.1 (per 100 KHz) 0.3 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM020BB	100 KHz - 2.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM040AA	100 KHZ - 4.0 GHz				SMA (M)	SMA (F)	1.05	0.32	A
DZM040BB	100 KHZ - 4.0 GHz				BNC (M)	BNC (F)	2.48	0.68	BB3
DZM124AA	10 MHz – 12.4 GHz	1.2:1 (to 4.5 GHz) 1.3:1 (to 7 GHz) 1.4:1 (to 12.4 GHz)	0.2 (per octave) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM124AB					SMA (M)	BNC (F)	2.50	0.56	AB3
DZM124NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM185AA	10 MHz – 18.5 GHz	1.2:1(to 4 GHz) 1.5:1(to 18.5 GHz)	(per octave to 8 GHz) (for 10 MHz to 8 GHz) 0.5 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM185AB					SMA (M)	BNC (F)	2.50	0.56	AB13
DZM185AB2					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM185AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM185NB					Type N (M)	BNC (F)	2.46	0.75	NB3
DZM1857B					APC-7	BNC (F)	2.59	0.75	7B3
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	CONNECTOR		SIIZE (INCHES)		OUTLINE
MODEL 1, 2	FREQUENCY RANGE	MAXIMUM VSWR	MAXIMUM FLATNESS (± dB)	LOW LEVEL SENSITIVITY (mV / mW)	INPUT	OUTPUT	LENGTH	DIA	OUTLINE
DZM265AA	10 MHz-26.5 GHz	1.2:1 (to 4 GHz) 1.5:1 (to 18 GHz) 1.8:1 (to 26.5 GHz)	0.2 (per octave to 8 GHz) 0.5 (for 10 MHz to 18 GHz) 1.0 (overall)	0.5	SMA (M)	SMA (F)	1.05	0.32	A
DZM265AB					SMA (M)	BNC (F)	1.89	0.39	AB23
DZM265AC					SMA (M)	SMC (M)	1.20	0.32	AC1
DZM2653B					APC3.5 (M)	BNC (F)	1.89	0.39	3B3
DZM2653C					APC3.5 (M)	SMC (M)	1. 70	0.38	3C3
DZR400KA	10 MHz – 40 GHz	1.3:1 (to 18 GHz) 1.8:1 (to 40 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 1.0 (to 40 GHz)	0.4	K* (M) (2.9mm)	SMA (F)	1.30	0.32	C1
DZR400KB					K* (M) (2.9mm)	BNC (F)	1.89	0.39	KB3
DZR400KC					K* (M) (2.9mm)	SMC (M)	1.35	0.32	KC3
DZR50024A	10 MHz – 50 GHz	1.3:1 (to 18 GHz) 1.6:1 (to 26 GHz) 1.8:1 (to 40 GHz) 2.0:1 (to 50 GHz)	0.3 (to 18 GHz) 0.6 (to 26 GHz) 0.8 (to 40 GHz) 1.0 (to 50 GHz)	0.5	2.4mm (M)	SMA (F)	1.32	0.32	24A3
DZR50024B					2.4mm (M)	BNC (F)	1.91	0.39	24B3
DZR50024C					2.4mm (M)	SMC (M)	1.36	0.32	24C3
DZ1018	1 GHz – 18.0 GHz	8.0:1 (Typical)	1.0 (Typical)	1.8	SMA (M)	SMA (F)	1.16	0.32	B
DZ1026	1 GHz – 26.0 GHz	8.0:1 (Typical)	1.5 (Typical)	1.6	SMA (M)	SMA (F)	1.16	0.32	B
